shock absorber FNJ-2016L-*
- Industrial machinery
- Fixed type
Dimension

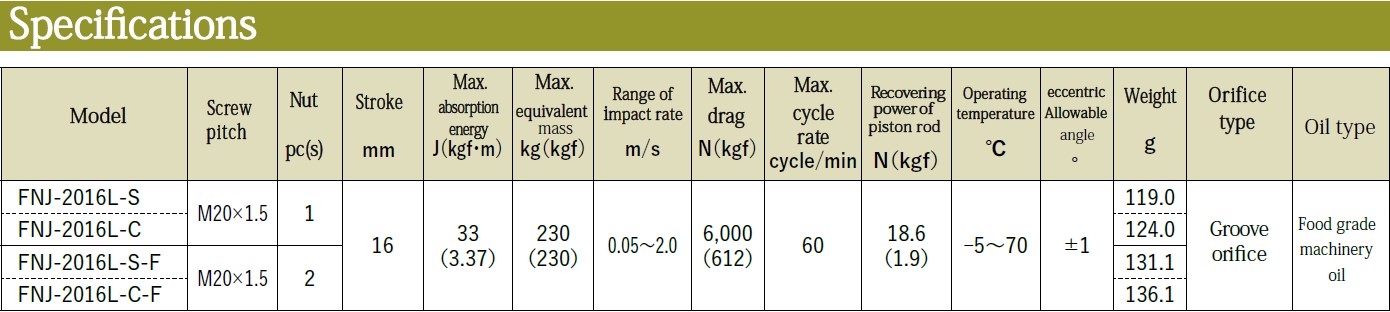

Specification
| Stroke（mm） | 16 |
|---|---|
| Maximum absorption energy J（kgf・m） | 33(3.37) |
| Absorption energy per minute J（kgf・m） | 343(35) |
| Max. equivalent mass kg（kgf） | 230(230) |
| Range of impact rate m/s | 0.05～2 |
| Maximum operation cycle cycle/min | 60 |
| Operating temperature range ℃ | -5～70 |
| Max. drag N（kgf） | 6,000(612) |
Notes on specifications / Adjusting method
Please peruse the operation manual carefully before use. Do not operate without sufficient mounting strength. Do not operate without an external stopper. Note that Products specification might be changed without notice.
